Smart Desk dock System P2C T7 Unitate desktop inteligenta cu sistem de incarcare al tabletei utilizate, cu imprimanta termica de 80mm integrata, cu cititor de coduri de bare 1D/2D , MSR, SCR sau NFC instalabile. Compatibila cu o varietate de tablete cu sistem de operare Windows sau Android Durabila si foarte stabila datorita designului cu centrul de greutate localizat foarte jos, la baza Desk Dock-ului.
Modelul nostru de sistem POS T7 este un model rezistent, luxos , care satisface toate dorintele clientilor. Este disponibil in varianta complet alb sau complet negru. Sistem Desk Dock T7 - pret 2550 Lei |
Sistemul integreaza intr-un spatiu mic diverse accesorii |
Foarte usor de demontat Tableta se poate intoarce spre client . Compatibilitate cu Windows si Android Accepta conectarea sertarului de bani, cititorului de coduri de bare, cititorului de carduri magnetice , poseda porturi RS232 siu USB |

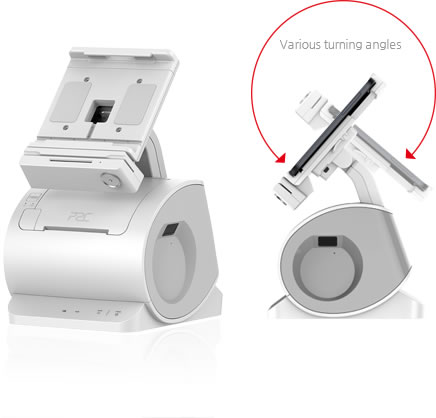

Suportul desk dock P2C T7
Desk Dock system T7 | Detalii | Observatii | |
---|---|---|---|
Baza | ACA-Dock | Disponibil pe ACA dock - sistemul accepta Tableta Android. | Sistem montare - prindere pentru tablete de dimensiunile de 10 la 12 inch.(165~223mm), cu Android sau Windows |
OTG Mode | Disponibil pe toate tabletele Android cu Micro USB port. | ||
CHARGE Mode | Disponibil pe toate tabletele Android cu Micro USB port. | ||
I/O Interfete |
Host USB | ACA-Dock, OTG, Charger (Micro USB B or USB type A connector) | Tableta nu este inclusa, trebuie verificat in functie de fiecare tableta ce porturi exista pe tableta utilizata |
Side USB | 1 x USB type A port (Can be used for card reader) | ||
External USB | 3 x USB type A ports (on the bottom) | ||
Serial RS232 | 1 x RS-232 DB9 (on the bottom) | USB to Serial (FTDI-FT232R) | |
Sertar de bani | 1 x RJ11 (+24V), suporta standard Epson si Star Cash Drawer | ||
Imprimanta | 3” Thermal Receipt printer (12 by 24 fonts / 42 Colum) 1 x Feed Switch, 1 x Error LED, 1x Power LED Buer size: 1Mbytes, Paper roll: 80mm, High speed: 170mm/sec LEDs and Key : Error LED, Power LED, Feed Key |
USB to Serial (Silicon Labs - CP232) Supports the OPOS Driver for Windows Tablet Can be selectable to USB and Serial I/F by jumper |
|
Sursa alimentare | Universal input (96~264VAC), DC24V/2.5A, 60 watt, level VI eficiency | ||
Certicari | KC, FCC, CE, CB, PSE, RoHS, UL | ||
Dimensiuni |
(322~365)mm x 185mm x 221mm (Height x Width x Depth) |
||
Greutate | 3.0Kg | ||
Indicatoare LED | Mode, Data, Power | ||
Taste functionale | Mode Select, Power on/o |
Optiuni disponibile la comanda
T7 | Detalii | Observatii | |
---|---|---|---|
Magnetic Stripe Reader - pret 310 Lei |
MSR: Comply with ISO 7811, Support 1 & 2 & 3 track | Supports the MSR setting program for MS Windows Supports the OPOS Driver for MS Windows |
|
Smart Card Reader - pret 556 lei |
ISO7816 EMV level 1 | ||
Dallas Reader (i-Button) |
Dallas Reader (Supported i-Button) | ||
Scanner - 1D - pret 453 Lei - 2D - pret 755 Lei |
1D/2D CCD Barcode Scanner (Scanner and NFC is not supported simultaneously) |
EAN-13, EAN-8, UPC-E, UPC-A, Code 128, GS1-128(UCC/EAN-128), AIM-128, ISBT-128, Interleaved 2of 5, ITF-6, ITF-14, Industrial 2 of 5, Standard 2 of 5, Code 39, Codabar, Code 93, Code 11, GS1-DataBar(RSS), Plessey, MSI-Plessey, Matrix 2of 5, ISBN, ISSN, PDF417, Data Matrix, QR Code(2D only) |
|
NFC - pret 445 Lei |
NFC Module ( NU se pot folosi simultan scanner-ul si NFC-ul) |
ISO 14443A/B part 4 (ISO 7816), Mifare Classic, Type2, Topaz, ISO 15693, Card Emulation (ISO 14443 A part 4), Peer T Peer (Simple P2P), ISO 7816 Contact IC, EMVCo Level 1 |
Specificatiile tehnice si informatile de produs pot fi schimbare fara nici un fel de notificare prealabila.
